Grafana Alerting: How It Works, Key Concepts & Best Practices

When something goes wrong in production, alerting should help you pinpoint what needs attention first. That gets harder when alerts fire repeatedly without providing a useful signal, notifications reach the wrong team, or an urgent issue gets buried under alerts that don’t require immediate action.

In this guide, you’ll learn what Grafana Alerting is, how it works, its key features, the best practices for using it in production, and how to troubleshoot common issues.

What is Grafana Alerting?

Grafana Alerting is Grafana’s built-in system for running alert rules against your data and sending alert notifications when conditions are met. It supports alert rules across multiple data sources and uses flexible routing so notifications can go straight to a contact point or pass through notification policies.

Grafana Alerting uses alert rules, alert instances, labels, and annotations to define how alerts are evaluated and handled.

• Alert rule: The definition of what Grafana should check. An alert rule includes the queries, expressions, conditions, and evaluation settings that decide when an alert should fire.
• Alert instance: The actual alert created when a rule matches a result. One alert rule can generate multiple alert instances, with one instance for each series, dimension, or label set returned by the query.
• Labels: Key-value pairs that identify an alert instance. Grafana uses them for searching, silencing, and routing notifications.
• Annotations: Extra information attached to an alert instance, such as a summary, description, or runbook link, to help the responder understand what happened and what to check next.

Together, these components determine how alerts are created, identified, and delivered.

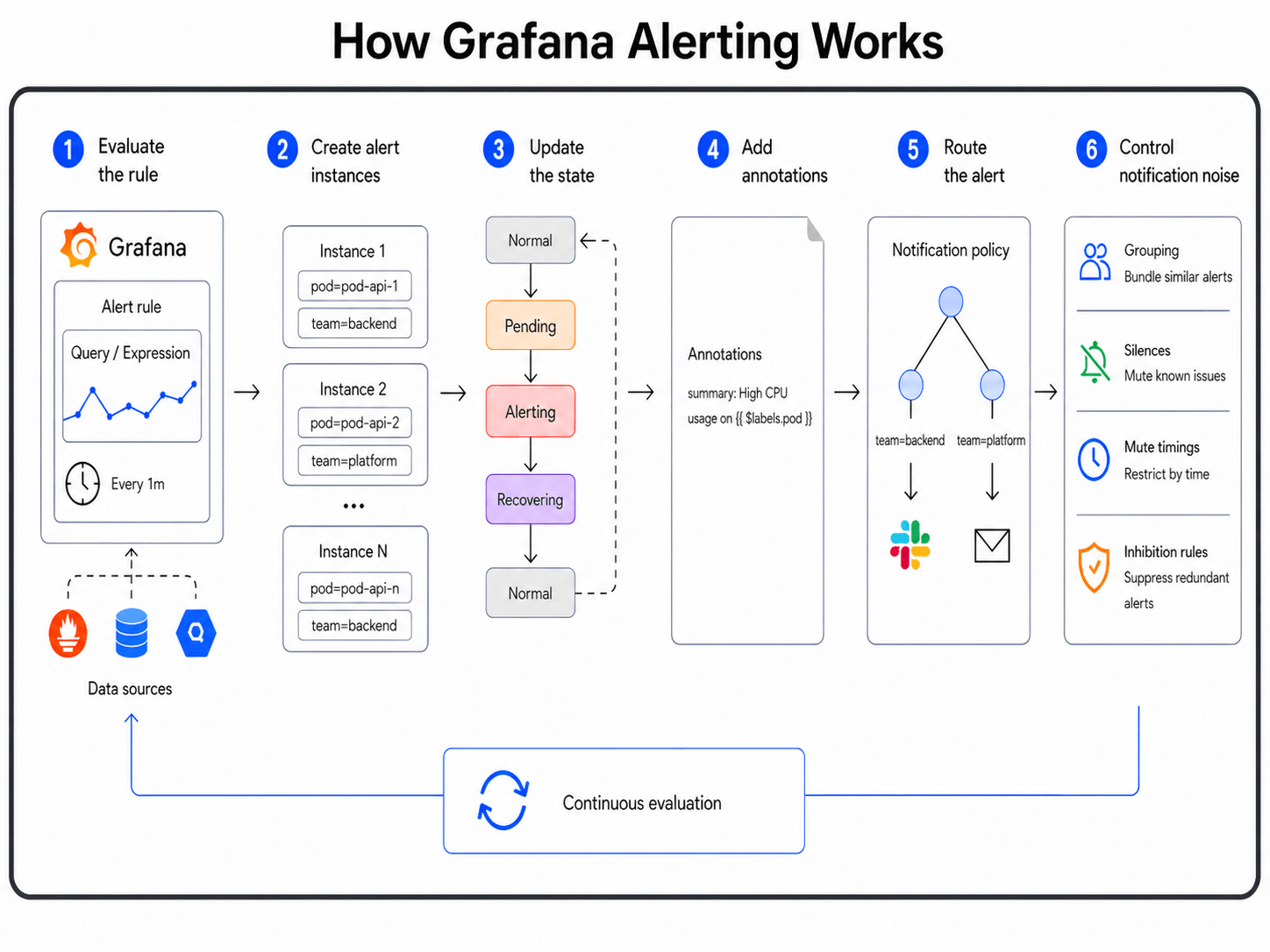

How Grafana Alerting Works at a Glance

After you define an alert rule, Grafana evaluates it on a schedule and tracks the results over time. The process has six main stages:

That difference matters once alerting starts to scale. Grafana Alerting gives you more control over how a single rule expands into multiple alert instances, how those instances are routed, and how much alert noise reaches responders.

Key Features of Grafana Alerting

Grafana Alerting has several features built to help you manage alerts in production. Here are the main ones.

1. Flexible alert rules: Grafana-managed alert rules can query backend data sources, including multiple sources in one rule. They also support expressions, advanced conditions, images in notifications, and configurable handling for No Data or Error states.
2. Multi-instance alerting: One alert rule can create a separate alert instance for each time series, dimension, or table row returned by the query. That lets you monitor a whole class of resources with one rule instead of duplicating the same alert logic across many separate rules.
3. Stateful evaluation: Grafana evaluates alert rules on a schedule and tracks each instance through states such as Normal, Pending, Alerting, and Recovering. The pending period controls how long a condition must stay true before the instance starts firing, while “keep firing for” controls how long it stays active after the condition clears.
4. Label-based routing: Grafana uses labels to match alert instances against notification policies. Those policies decide where notifications go, when they are sent, and how related alerts are grouped.
5. Notification controls: Contact points define where alert notifications are sent, such as Slack, email, PagerDuty, Grafana IRM, or webhooks. Notification templates control message content, while silences, mute timings, and inhibition rules suppress notifications without stopping alert evaluation.
6. Automated alert management: Grafana supports recording rules for precomputing expensive or frequently used queries into new time series. It also supports provisioning through configuration files, Terraform, and the Alerting provisioning HTTP API, so alerting resources can be reviewed and managed outside the UI.

These features keep alerting manageable as your rules, services, and notification routes grow.

Data Sources Supported by Grafana Alerting

Grafana Alerting supports alert evaluation across several backend data source types:

Choose the source that matches the signal the rule needs to evaluate. Use metrics for thresholds and rates, logs for event patterns, traces for request behavior, and SQL or cloud data for source-specific checks.

Common Use Cases for Grafana Alerting in Production

Grafana Alerting is useful in production when a condition needs attention before it affects users, services, or scheduled workflows. A good alert should show what happened, where the signal came from, and what the responder should check next.

User-Facing Latency and Error Spikes

A latency or error spike needs an alert when it affects the user path. Common examples include slow API responses, checkout failures, or HTTP 5xx spikes after a deployment. A Grafana alert rule evaluates service metrics such as p95 latency, request rate, error rate, and saturation, then routes firing alerts to the team that owns the affected service.

SLO Burn Before Targets Are Missed

SLO alerts help you respond before a reliability target is missed. A burn-rate rule tracks how quickly a service consumes its error budget and separates fast-burn paging alerts from slower follow-up alerts. A Grafana burn-rate rule keeps the alert tied to reliability impact instead of a single metric crossing a threshold.

Failed or Stuck Kubernetes Workloads

Kubernetes workload alerts are useful when pods, containers, or jobs enter states that break a service. Common cases include CrashLoopBackOff, OOMKilled containers, pods stuck Pending, pods not ready, failed Jobs, or restart counts rising after a rollout. Grafana alert rules evaluate Kubernetes metrics, events, or logs, while labels such as namespace, workload, cluster, and team show where the responder should start.

Node or Resource Pressure

Resource-pressure alerts matter when infrastructure limits start affecting workloads. High CPU usage, memory pressure, disk pressure, low filesystem space, network saturation, or a NotReady node may lead to pod eviction, failed scheduling, or slower service response. Grafana alert rules work best here when the condition persists long enough to affect workloads, not when it captures every short spike.

Missing Telemetry or Failed Scrape Targets

Missing telemetry needs its own alert because silence can hide a real failure. A service, exporter, scrape target, or query may stop returning usable data while the system appears normal in dashboards. Grafana Alerting treats No Data and Error states as alert conditions, helping responders distinguish a healthy system from one that has stopped reporting.

Delayed Jobs, Queue Backlogs, or Failed Workflows

Some production failures happen outside the main request path. Queue depth, delayed payment processing, failed inventory syncs, stale records, or incomplete scheduled jobs may need an alert even when the main service still responds. Grafana alert rules evaluate SQL queries, metrics, logs, or indexed events for these checks.

How to Set Up Grafana Alerting

In this section, you’ll learn how to set up a Grafana-managed alert rule from query to notification routing. The example uses a checkout service error-rate alert, but the same steps apply to latency, Kubernetes workload health, queue depth, missing telemetry, and more.

Create a New Grafana-Managed Alert Rule

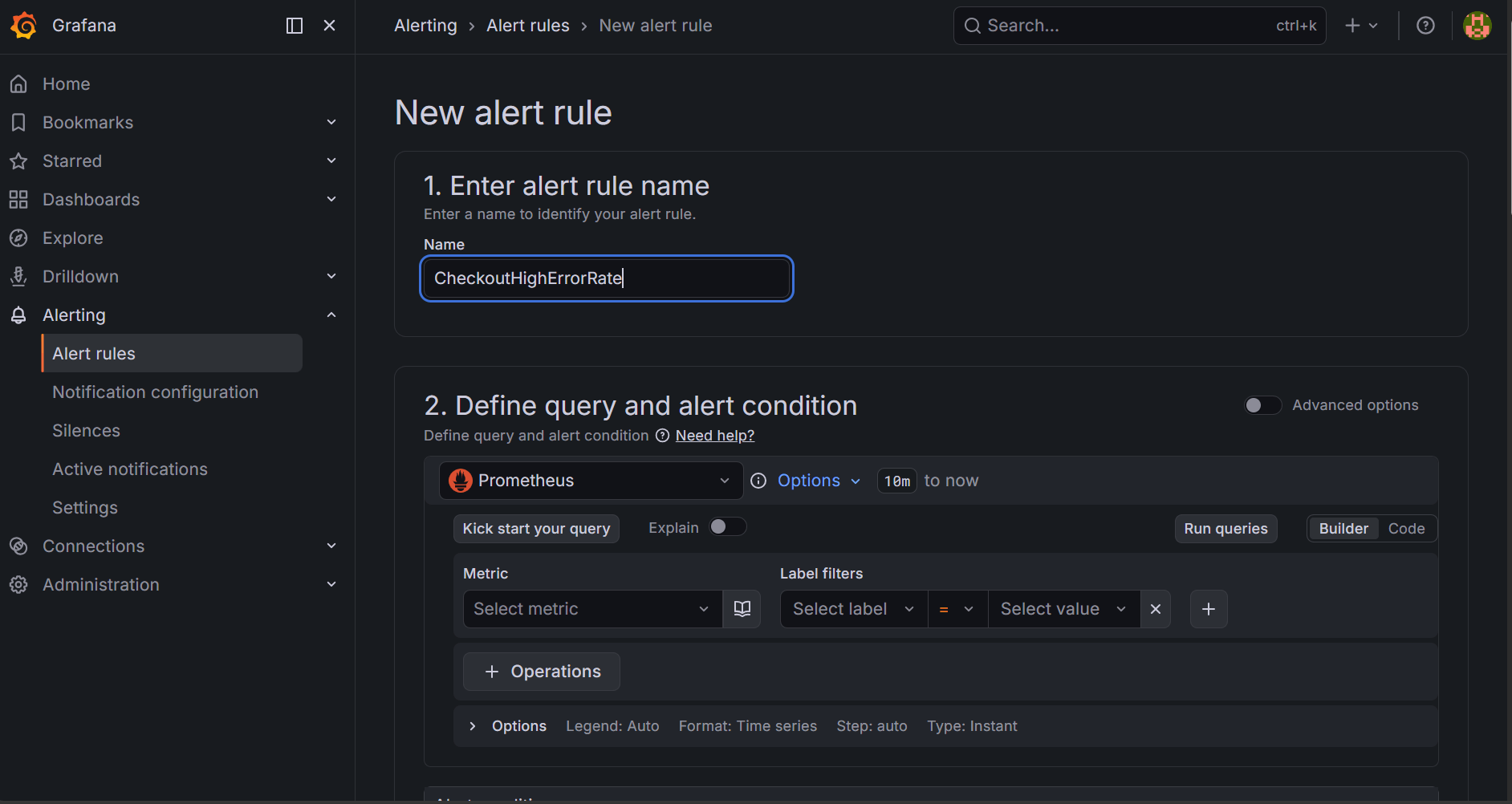

Open Alerting>Alert rules> + New alert rule, then give the rule a clear name, such as `CheckoutHighErrorRate`.

Grafana uses the rule name as the `alertname` label for every alert instance created from that rule, so avoid vague names like `HighErrors` or `ServiceAlert`.

Write the Query

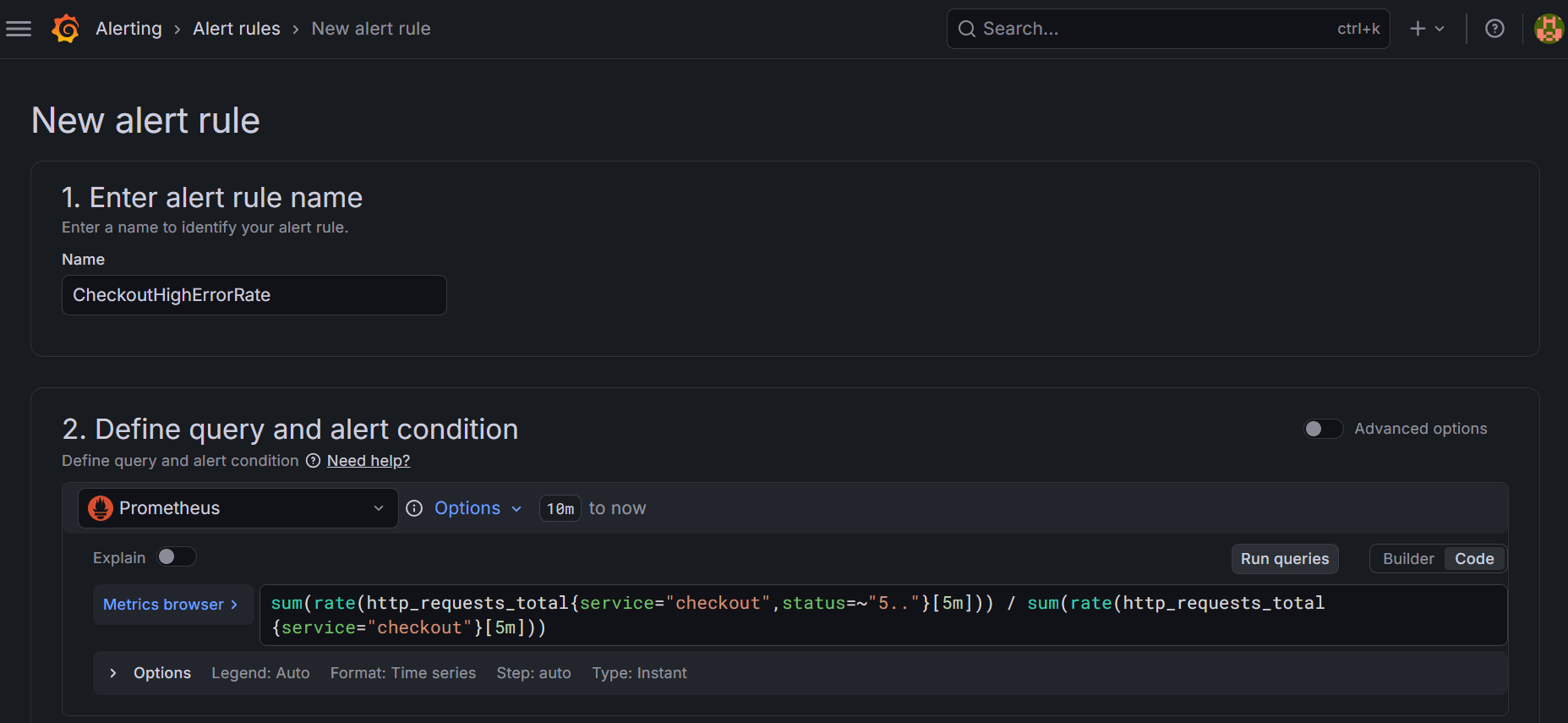

Select the Prometheus data source that stores the service metric, then write the query for the condition you want to detect.

This example calculates the percentage of 5xx responses for a checkout service over the last five minutes.

sum(rate(http_requests_total{service="checkout",status=~"5.."}[5m]))
/
sum(rate(http_requests_total{service="checkout"}[5m]))

Preview the query result before moving to the condition. Confirm that it returns the expected service series and that the value changes when errors increase.

Define the Alert Condition

Set the condition to fire when the query result is above `0.05`, which represents a 5 percent error rate.

Add Labels

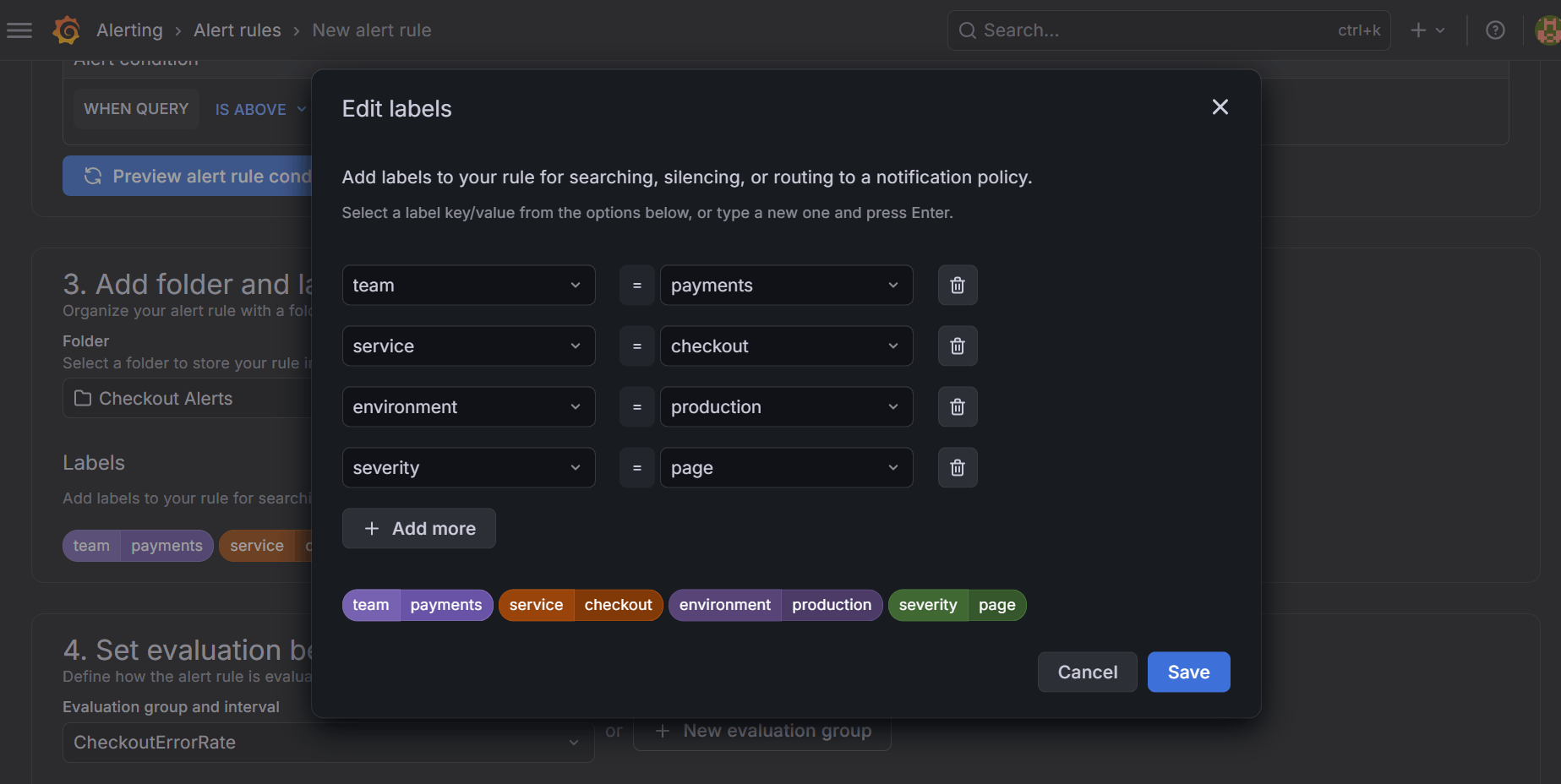

Add labels that clearly indicate ownership and routing. For example:

team: payments
service: checkout
environment: production
severity: page

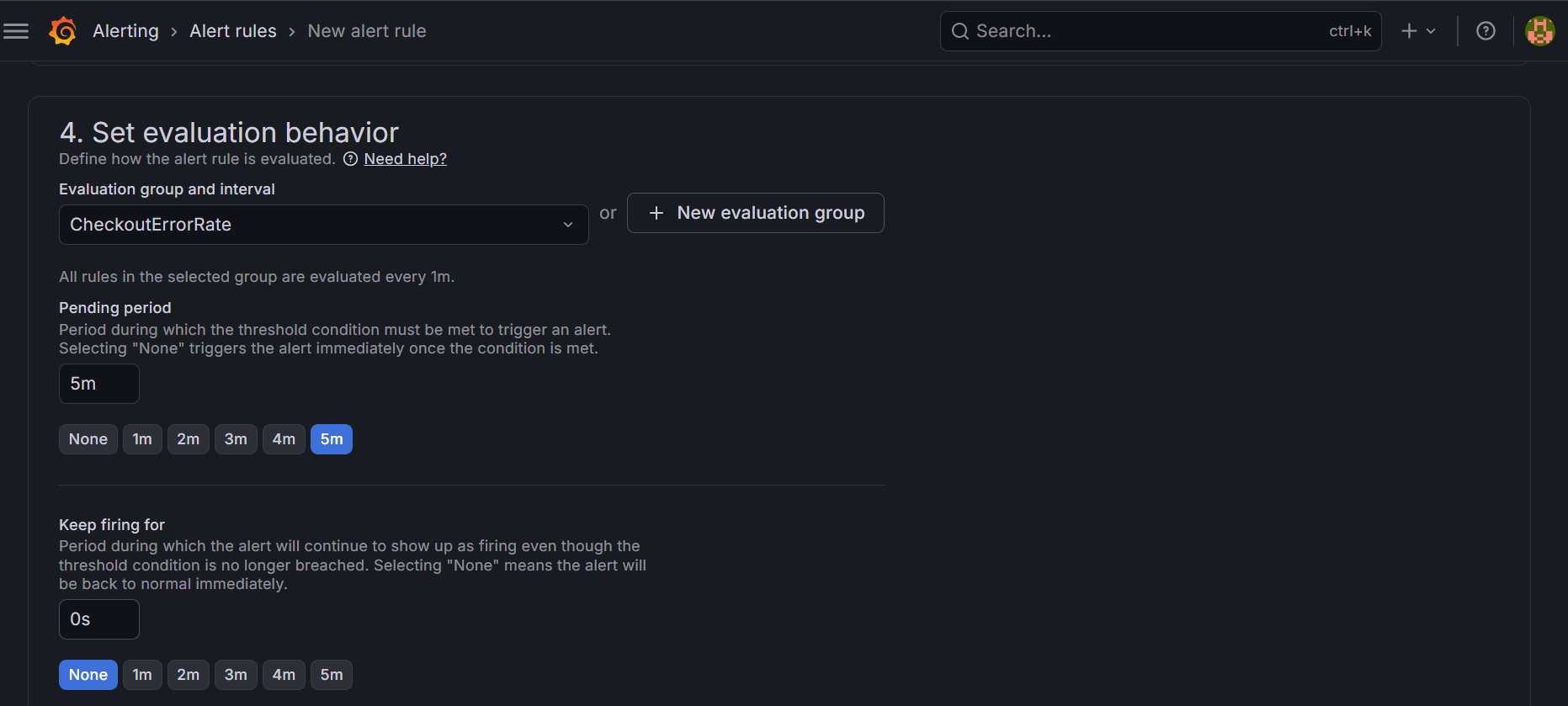

Set the Evaluation Timing

Place the rule in an evaluation group, then choose how often Grafana should evaluate it. For this kind of alert, you might evaluate every `1m` and set a pending period of `5m`, so one short spike does not page the team.

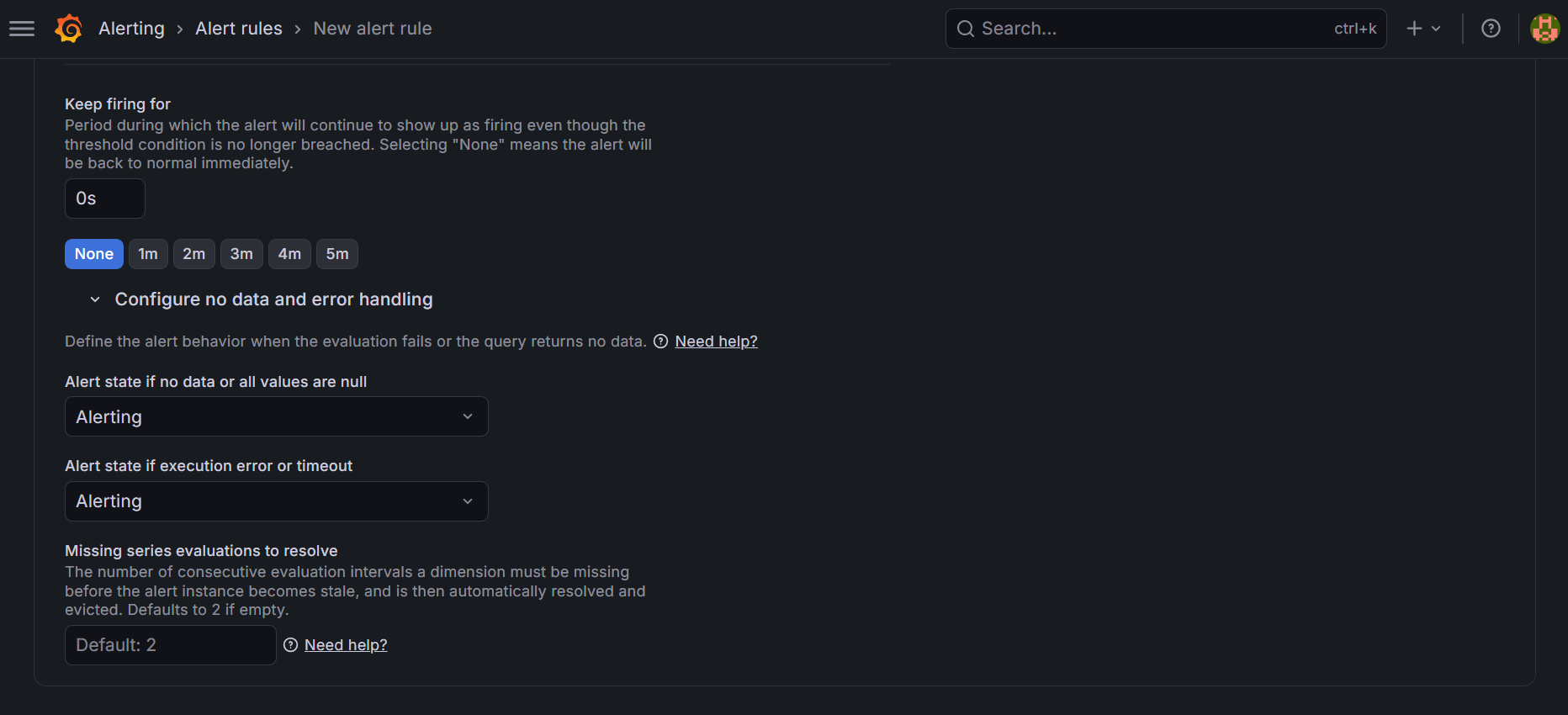

Use Keep firing for if you want the alert to enter a short Recovering window after the condition clears.

Configure No Data and Error Behavior

Decide what should happen if the query returns no data or fails. For a user-facing service, treat No data and Error states as separate conditions and choose whether they should follow the pending period, keep the last state, or trigger their own alerts based on how critical missing telemetry is for that service.

Use the Keep last state only when intermittent query gaps would otherwise create noisy fire-and-resolve cycles.

Route the Alert

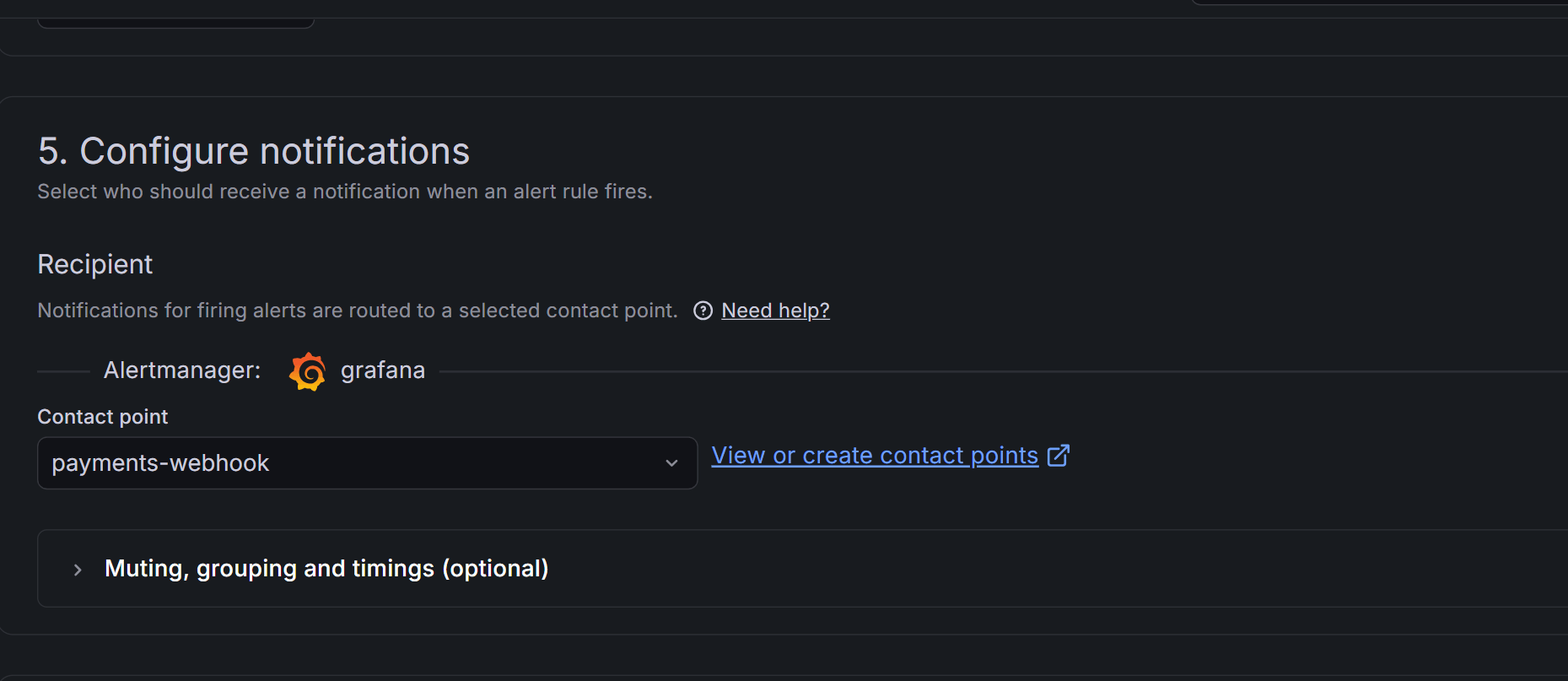

Create or choose a contact point, such as Slack, email, PagerDuty, Grafana IRM, Microsoft Teams, or a webhook.

Choosing a contact point in Grafana alerting

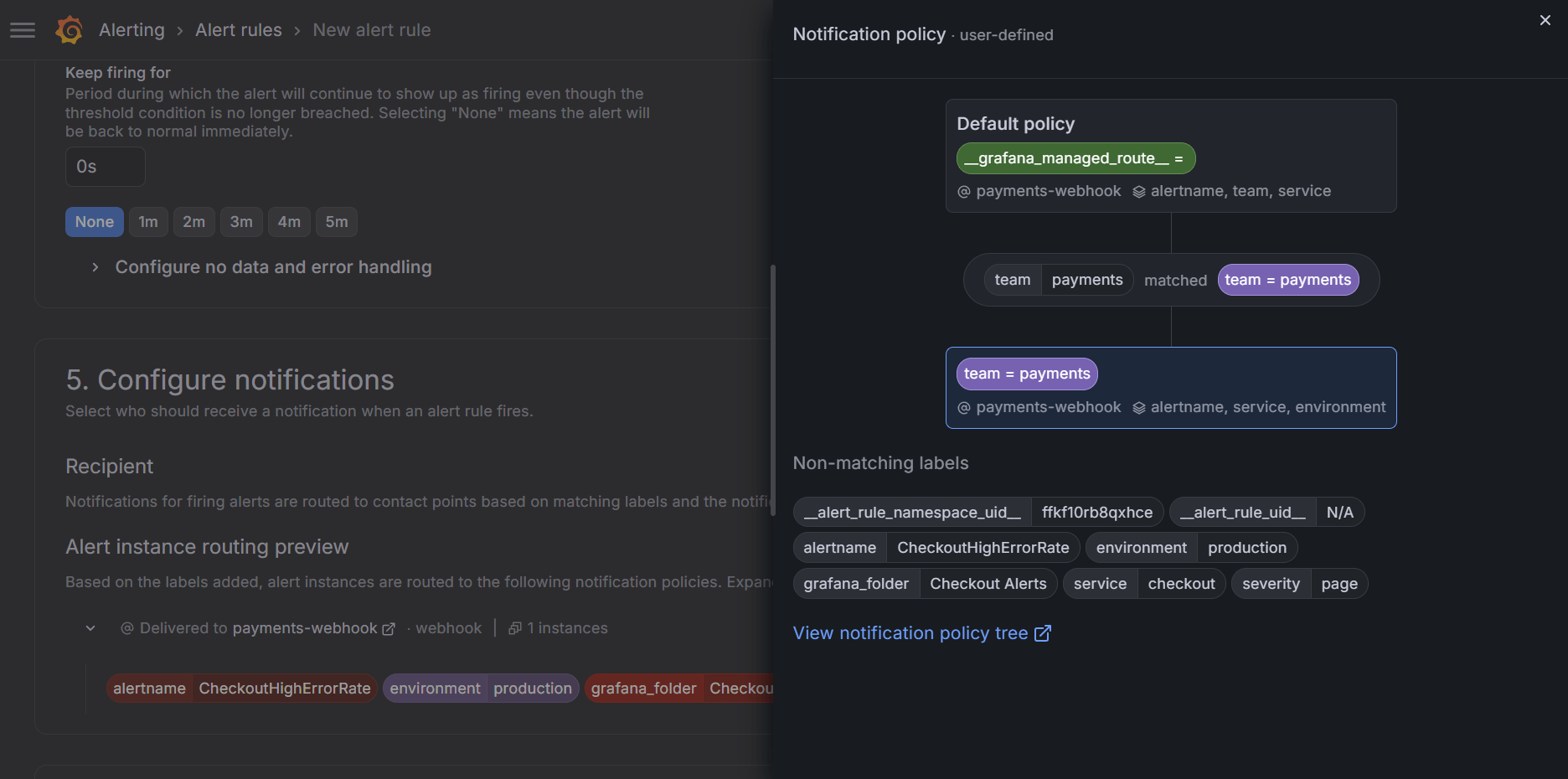

Then route the alert through a notification policy that matches its labels, such as `team=payments`.

Add Annotations

Configure annotations that help the responder start triage. For example:

summary: Checkout error rate is above 5%
description: The checkout service has returned more than 5% HTTP 5xx responses for 5 minutes.
runbook_url: https://runbooks.example.com/service-errors

Test the Alert

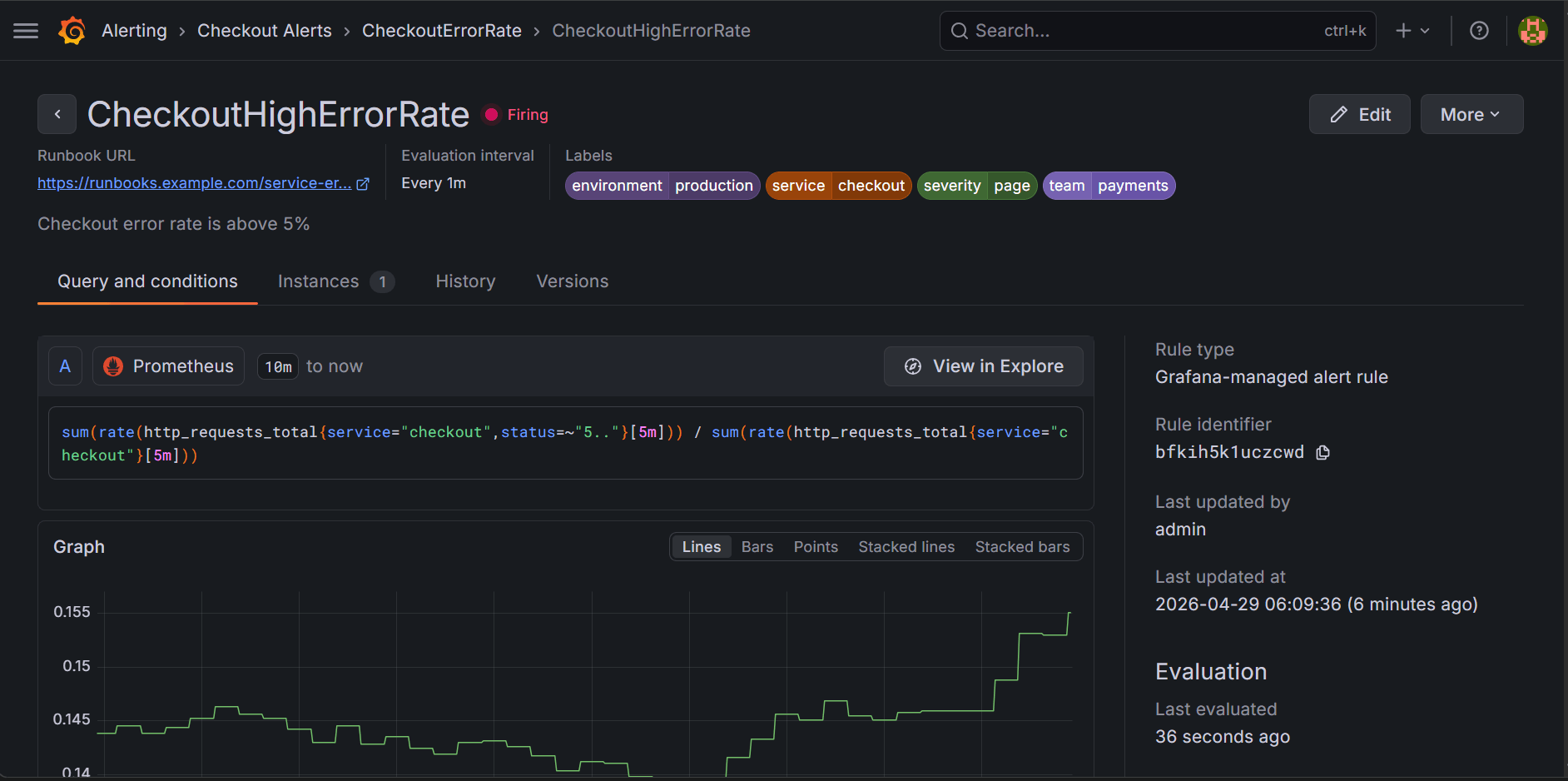

After saving the rule, confirm that the query returns the expected series, the rule creates the expected alert instance labels, and the notification reaches the right contact point.

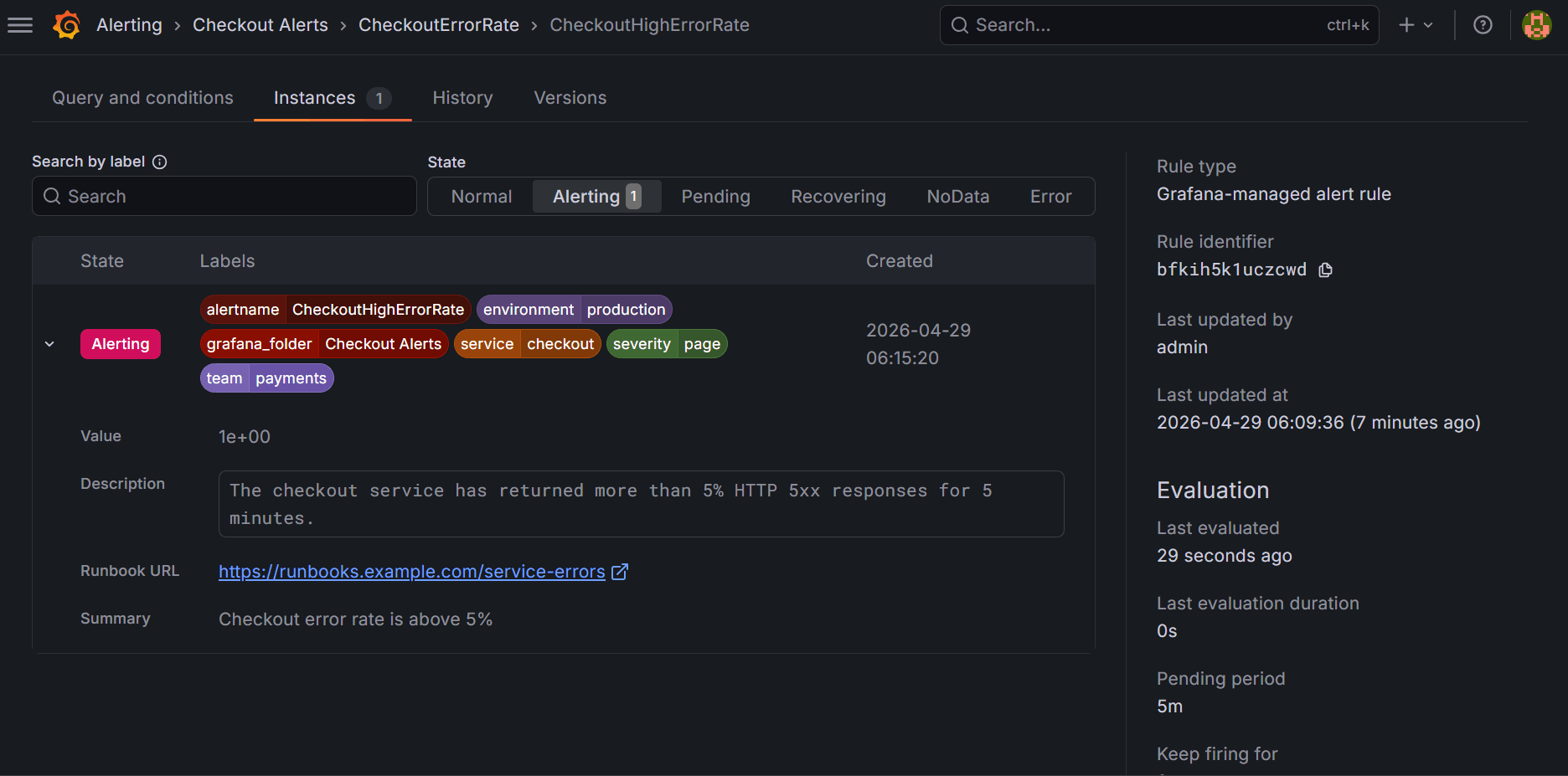

Here are the alerting instance details.

Also, test the contact point itself before relying on it for paging.

Managing Alert Noise and Reducing False Positives in Grafana Alerting

Alert noise usually comes from rules that fire too early, repeated notifications for the same incident, or alerts that do not lead to action. In Grafana Alerting, reducing that noise requires tuning both the rule and the notification path.

Alert on Symptoms That Need Action

Start with alerts that describe a user-facing or service-level problem. High checkout latency, rising 5xx errors, failed jobs, or sustained resource pressure are better alert targets than low-level events that do not require a response. A production page should point to a symptom someone can investigate or fix, not every warning the system can produce.

Add a Pending Period Before Firing

Short spikes often create false positives when the rule fires immediately. Set a pending period so the condition must stay true before the alert moves to Alerting. For example, a CPU or error-rate alert that stays above the threshold for 5 minutes is usually more meaningful than one that crosses the line for a few seconds.

Keep Labels Stable

Labels decide alert identity, routing, grouping, and silencing, so unstable labels create noise fast. Avoid putting changing values, such as raw query values, timestamps, request IDs, or full dynamic paths, into labels. Put changing details in annotations instead.

Group Related Alert Instances

A single incident often produces many alert instances. For example, a single database issue may trigger API latency, 5xx errors, and downstream service alerts. Use notification policies to group related alerts by stable labels such as alertname, service, team, cluster, or namespace.

Use Silences and Mute Timings Correctly

Use silences for one-time suppression, such as a maintenance window or an incident where the team already knows about the alert. Use mute timings for recurring schedules, such as non-business hours or planned low-priority windows. Neither stops the rule from evaluating. The alert state still updates while notifications stay quiet.

Suppress Dependent Alerts With Inhibition

Some alerts become redundant when a root-cause alert is already firing. For example, if a node is down, several pod and service alerts may follow. Inhibition rules suppress target notifications when a source alert with matching label values is already firing, keeping responders focused on the likely root cause rather than the symptoms around it.

Alert Routing, Escalation, and On-Call Workflow in Grafana Alerting

Alert routing, escalation, and on-call workflow answer different operational questions. Routing decides the first destination for an alert notification. Escalation determines the next notification step if no one responds. The on-call workflow defines the responder who is responsible at that time.

In Grafana Alerting, routing uses alert labels, notification policies, and contact points. Labels such as `team`, `service`, `severity`, and `environment` identify the alert owner and urgency. Notification policies match those labels and send the alert to a contact point. The contact point delivers the notification to Slack, email, PagerDuty, Grafana IRM, Microsoft Teams, or a webhook.

Escalation begins after the notification reaches the first destination. If the contact point sends the alert to Grafana IRM or another on-call tool, the escalation policy decides who receives the first page, how long the system waits, and who receives the next page. Routing sends the alert to a destination, but the on-call workflow assigns responsibility for the response.

Performance and Scalability Considerations in Grafana Alerting

Grafana Alerting works well at scale when rule evaluation stays predictable. As you add more rules, data sources, and alert instances, alerting can also increase load on Prometheus, Loki, SQL, or cloud monitoring backends. To keep the setup manageable, you’ll need to:

• Set evaluation intervals deliberately: Each evaluation interval controls how often Grafana runs the rule. A user-facing outage alert may need a `1m` interval. A capacity alert, batch job alert, or low-priority workflow alert may work with a `5m` or `10m` interval. Short intervals increase evaluation work when the query is expensive or returns many series.
• Design evaluation groups for scale: Evaluation groups control how often rules run. Rules in different evaluation groups can run at the same time, so group expensive, recording, and low-priority rules by the interval they actually need. Use shorter intervals for urgent service alerts and longer intervals for capacity, workflow, or batch-job alerts.
• Control alert instance count: Grafana creates alert instances from the label sets returned by the query. Labels such as `service`, `team`, `cluster`, and `namespace` usually help ownership and routing. Labels such as request IDs, timestamps, user IDs, raw query values, and full dynamic paths increase alert instance count, query cost, storage cost, and notification volume.
• Use recording rules for expensive calculations: Recording rules calculate repeated or expensive expressions in advance and save the result as a new time series. Use them for heavy aggregations, SLO burn-rate calculations, latency rollups, error-rate rollups, or expressions reused by several dashboards and alert rules. Match the alert evaluation interval with the recording rule interval so the alert reads recent data.
• Limit data source load: Hundreds of alert rules can place repeated query load on the same Prometheus, Loki, SQL, or cloud monitoring backend. Reduce that load by reusing recorded metrics, lowering unnecessary evaluation frequency, and avoiding broad queries that scan more data than the alert needs.
• Plan high availability carefully: High availability improves alerting reliability, but it increases evaluation work. In Grafana Alerting high availability mode, each Grafana instance evaluates the full rule set by default. Single-node evaluation mode reduces duplicate evaluation work by assigning rule evaluation to a single primary instance.

Troubleshooting Grafana Alerting Issues

Most Grafana Alerting problems start in one of two places. The rule either does not evaluate the condition as you expect or the notification does not reach the intended destination. Let’s look at the common issues and how to fix them.

The Alert Rule Does Not Fire

If the rule does not fire, confirm that the query returns data in the alert rule editor. Do not rely only on the dashboard panel. If the query works, check the reducer, threshold, evaluation interval, and pending period. Lower the threshold if it is too high, adjust the reducer if it is using the wrong value, or shorten the pending period if the condition does not stay true long enough to leave Pending.

The Alert Shows No Data or Error

No Data means the query ran but returned no data points. An error means Grafana could not evaluate the query. Check the data source connection, query syntax, time range, scrape target, metric name, and query labels. Fix the broken query or data source first, then decide whether No Data should become Alerting, Normal, Error, or Keep Last State for that rule.

The Alert Fires Too Often

Frequent fire-and-resolve cycles usually stem from a sensitive threshold, a short pending period, or a noisy query window. Increase the pending period, adjust the threshold, or aggregate the signal over a longer window. Check for dynamic labels that create extra alert instances, and move changing values into annotations instead.

Notifications Do Not Arrive

If the rule fires but no notification arrives, test the contact point first. Confirm that it is enabled and configured correctly. Then check whether the alert labels match the expected notification policy. If they do not match, update the alert labels or change the policy matcher so the alert reaches the intended contact point.

Alerts Reach the Wrong Team

Wrong routing usually comes from a label mismatch. Compare the labels on the firing alert with the matchers in the notification policy. For example, a policy that expects `team=payments` will not match an alert labeled `owner=payments`. Fix the routing label on the rule or update the notification policy matcher so both use the same label key and value.

Alert Evaluation Starts Lagging

If evaluation slows down, check rule count, query cost, evaluation interval, and alert instance count. Expensive queries and high-cardinality result sets increase load on Grafana and the data source. Adjust intervals, reduce query scope, remove unnecessary labels, or move repeated calculations into recording rules.

Best Practices for Grafana Alerting in Kubernetes and Microservices

Kubernetes and microservices setups create many alert dimensions because workloads move across pods, nodes, namespaces, and clusters. These best practices help keep Grafana alert rules clear as your services and infrastructure change.

Faster Root Cause Analysis for Grafana Alerts With groundcover

A Grafana alert tells you which condition fired. Root cause analysis starts after that, when the responder needs to explain why the condition changed. groundcover shortens that investigation by correlating Grafana alert signals with the logs, traces, Kubernetes events, and workload context needed to confirm the cause.

Embedded Grafana With Unified Signal Correlation

groundcover embeds Grafana inside its platform, so you can keep Grafana dashboards and alerts while investigating related telemetry in the same workspace. Prometheus handles metric-based Grafana alerts, while ClickHouse supports alerts based on traces, logs, and Kubernetes events. When a latency, error, or resource-pressure alert fires, the correlated workload, trace, log, and event data are already available in the same workspace.

Zero-Instrumentation Telemetry Collection With eBPF

groundcover uses an eBPF-based sensor to collect logs, metrics, traces, and infrastructure context without SDK changes or application code changes. This gives responders telemetry for services that were not manually instrumented. When a Grafana alert fires for latency, errors, or resource pressure, you already have service behavior, infrastructure context, and trace data available for investigation.

Alert Dimensions That Point to the Affected Workload

groundcover alerts can use dimensions such as workload, namespace, node, and cluster. These dimensions make Grafana alerts more useful because the alert can show where the issue is occurring before you open logs or traces. For example, a log-based alert grouped by workload and namespace points the investigation to the affected workload instead of sending a flat error-count notification.

Log and Trace Correlation Through Trace ID

Logs show application messages and error details, while traces show request paths, slow spans, and failed dependencies. groundcover correlates logs and traces through a shared trace_id, so responders can move between a trace and the logs from the same request. After a Grafana latency or error-rate alert fires, this reduces manual timestamp matching because the responder can inspect the trace and related logs from the same execution context.

Search and Filters Across the Same Operational Context

groundcover search and filters work across logs, traces, Kubernetes events, API catalog entries, and issues. Responders can filter by fields such as namespace, workload, service, or node. If a Grafana alert identifies `namespace=checkout` and `workload=checkout-api`, you can use those same fields to narrow the related logs, traces, events, and issues.

Conclusion

Grafana Alerting works best when rules reflect real production conditions, labels remain stable, and notification routes align with service ownership. Good alerting also requires sensible evaluation timing, low-cardinality labels, and noise controls that keep you focused.

In production, a Grafana alert is only the start of the investigation. You’ll need logs, traces, Kubernetes events, workload metadata, and issue context to explain why the alert fired. groundcover helps connect Grafana alerts to those signals so you can move faster from detection to root cause analysis.
